How to Install a Thermostatic Shower Valve System Correctly

Preparing the Site and Materials

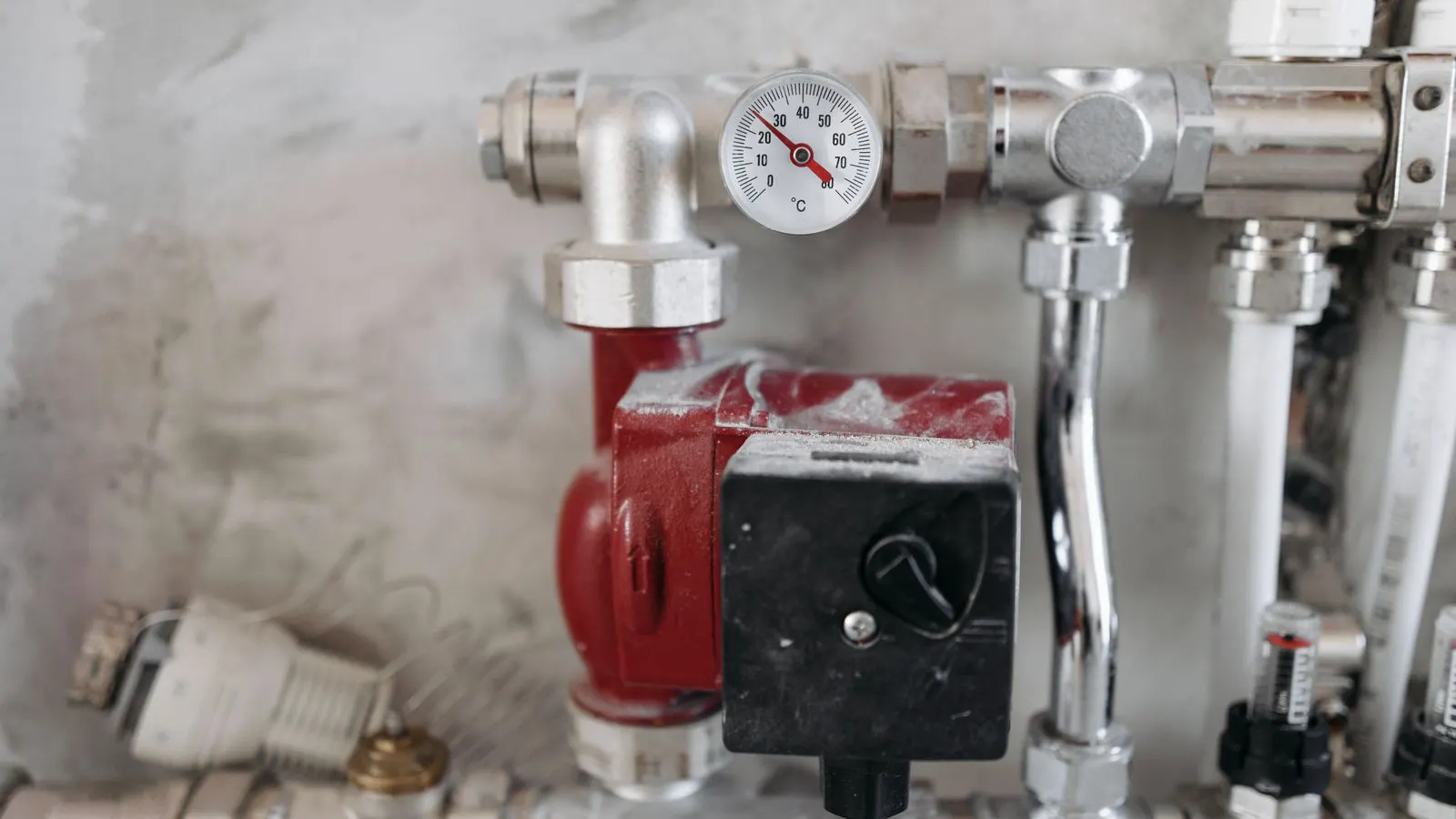

Before touching a single pipe, you need to confirm the site is ready. A thermostatic shower valve is a precision component. If the supply lines are corroded, kinked, or improperly aligned, the valve body will not seat correctly. This causes stress on the fittings and leads to leaks at the threads.

First, shut off the water supply. Locate the isolation valves for both the hot and cold mains. Close them fully. Open the nearest shower or tap to drain the remaining pressure from the lines. This prevents water from gushing out when you break the joint. Wait until the flow stops completely before proceeding. Residual pressure in the system can be deceptive.

Gather your tools. You will need adjustable wrenches, a pipe wrench if the connections are stubborn, a screwdriver, and a torque wrench if the valve body requires a specific tightening value. Check the manufacturer’s manual for the recommended torque. Over-tightening can crack the valve body, while under-tightening will result in thread leaks. If the manual is unavailable, apply a firm hand-tight plus one quarter to half a turn with a wrench. This is a conservative standard for most brass or plastic bodies.

You also need thread sealant. Use a pipe thread sealant or PTFE tape specifically rated for plumbing applications. Do not use electrical tape or standard packing. These materials will fail under water pressure and temperature. For PTFE tape, wrap it clockwise in the direction the fitting tightens. Apply two to three layers over the male threads. For paste sealant, apply a thin, even coat. Excessive paste can enter the valve body and damage the internal seals.

Removing the Existing Valve

Remove the old shower valve or mixer assembly. This step varies depending on the existing setup, but the core process is similar.

1. Remove the shower head and any diverter or mixer handle.
2. Disconnect the supply lines from the old valve body.
3. Loosen the nuts that hold the valve body to the wall flange or pipe stubs.

If the valve is built into the wall, you may need to access the back of the valve. This often requires removing a decorative cover plate. Check the condition of the pipe threads. If they are stripped or damaged, replace the pipe section before installing the new thermostatic shower valve. Using a damaged pipe with a new valve guarantees a leak.

Inspect the internal passages if accessible. Old valves often trap scale and mineral deposits. If the water system has had sediment issues, clean the inlet ports of the new valve body before installation. A magnet or a soft brush can help remove loose debris. Do not use metal brushes on plastic components, as this creates scratches that compromise the seal.

Connecting the Supply Lines

Connect the hot and cold supply lines to the new thermostatic shower valve. The valve body has two inlets. Identify the hot inlet and the cold inlet. They are usually marked with red and blue, or with “H” and “C”.

1. Apply thread sealant to the male threads of the pipe or the female threads of the valve.
2. Hand-tighten the connection.
3. Use a wrench to tighten the connection an additional half to three-quarters of a turn. Do not force it.

The order of connection matters. If you cross the hot and cold lines, the thermostat will not function correctly. The water will mix in the wrong direction, and the temperature control will be reversed. Double-check the markings before tightening. Take a photo of the pipe labels before disconnecting anything to avoid confusion later.

If the supply lines are flexible hoses, ensure they are not kinked. Kinked hoses restrict flow and can cause pressure spikes. This puts unnecessary stress on the thermostatic valve and can damage the internal cartridge. Straighten the hoses gently and support their weight so they do not pull on the valve connections.

Installing the Thermostatic Cartridge

The heart of the system is the thermostatic cartridge. This component contains the thermostat mechanism that blends the hot and cold water to maintain a constant temperature.

Remove the cartridge from its packaging. Check for any damage. Do not touch the internal components with bare fingers. Skin oils can degrade the seals. Wipe the external surface with a dry cloth if necessary.

1. Align the cartridge with the valve body.
2. Insert it firmly until it clicks into place.
3. Secure the retaining ring or clip if the model requires one.

The cartridge must sit squarely. If it is tilted, the thermostat element will not sense the water temperature accurately. This leads to unstable mixing and potential scalding. Some cartridges have an orientation mark on the body and the cartridge. Align these marks precisely before securing the retaining ring.

Setting the Maximum Temperature

Before connecting the outlet, set the maximum temperature limit. Most thermostatic valves have a limiter knob or a small screw on the side of the body. This setting prevents the water from exceeding a safe temperature.

Set the limiter to the maximum safe temperature for your region. A common safety standard is 38°C to 40°C. This setting overrides the user’s desired temperature. If the user tries to set the handle to a higher temperature, the valve will stop. This is a critical safety feature.

If the limiter is not set, the valve will allow the water to reach the full temperature of the hot supply. This is a scalding risk, especially for children or elderly users. Always verify this setting during installation. Test the limiter by turning the handle past the set point. The water flow should cease or the handle should lock at the limit.

Final Assembly and Pressure Test

Attach the outlet connection. This is usually the pipe that leads to the shower head or a diverter. Connect it to the outlet port of the valve body. Use thread sealant and tighten to the manufacturer’s specification.

Open the isolation valves slowly. This allows the water to fill the lines gradually. If you open them too quickly, the pressure surge can dislodge loose connections.

1. Open the cold valve first.
2. Open the hot valve second.
3. Run water through the shower for two minutes.

Check all connections for leaks. Look at the thread joints, the outlet connection, and the cartridge area. If you see a drip, shut off the water and tighten the connection. Re-check the temperature by running the shower. The water should stay at the set temperature even if the hot supply pressure fluctuates.

Component	Function	Common Installation Error
Thermostatic Cartridge	Blends water to maintain constant temp	Misalignment or cross-threading
Supply Lines	Deliver hot and cold water	Kinking or cross-connection
Limiter Knob	Prevents water from exceeding safe temp	Set too high or not set
Outlet Connection	Directs mixed water to shower	Loose fitting or poor seal
Valve Body	Houses the cartridge and connections	Over-tightening or cracking

Common Mistakes to Avoid

Installers often skip small steps that cause major problems later. Avoid these common errors.

1. Ignoring Pipe Condition: Installing a new valve on old, corroded pipes leads to leaks. Replace any damaged pipe sections.
2. Crossing Hot and Cold Lines: This reverses the temperature control. Always verify the markings.
3. Omitting Thread Sealant: Relying on the threads alone can cause leaks. Use the correct sealant.
4. Not Setting the Limiter: Leaving the limiter at the maximum setting defeats the purpose of the thermostatic valve.
5. Over-Tightening: This can crack the valve body or damage the cartridge. Follow the torque specifications.

Final Verification

Once the installation is complete, perform a final check. Verify that the mixer handle moves smoothly. It should not stick or feel gritty. Check that the temperature remains stable for at least five minutes.

If the temperature fluctuates, the cartridge may be faulty or the water pressure may be too high. Thermostatic valves have a minimum pressure requirement. If the supply pressure is below this limit, the valve will not function correctly. In this case, consider a booster pump or a different valve model.

Document the installation. Note the maximum temperature setting, the date of installation, and the make and model of the valve. This information is useful for future maintenance and compliance checks.

A correctly installed thermostatic shower valve provides a safe, comfortable, and consistent showering experience. It also reduces water waste by preventing users from running the water while waiting for it to warm up. Take the time to get the details right. The initial effort saves you from callbacks and repairs.
